Mindray USG DC-70 Expert

Good image quality is prime for a promising ultrasound. DC-70 Expert offers that and a lot more. Its unique touch gesture feature is designed to help improve workflow, provide you with ease and certainty, enabling you to put patient care first. The clarity, as a result of high-end inherent technologies, would help you achieve easy fetal biometry analysis, 4D imaging, and GYN abnormalities detection with best in class image performance. The quality exams and unprecedentedly optimized user experience have already built up DC-70 Expert as the true workhorse to cope with various challenges of your daily OB/GYN practice.

Performance

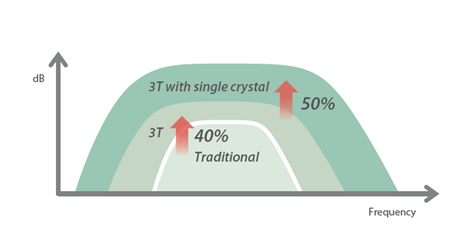

3T Transducer Technology™ with Single Crystal

For higher diagnostic confidence, all transducers are equipped with Mindray’s unique 3T transducer technology with up to 40% signal to noise ratio (S/N) improvement comparing with traditional technology. Further enhanced with the single crystal technology, DC-70 Expert provides better penetration, resolution and color dynamic flow with additional 50% S/N improvement. Particularly, the C5-1E and SP5-1E provide reliable performance for abdominal and cardiac scanning especially on difficult patients.

Echo-enriched Beam Forming

Echo-enriched beam former permits the use of traditionally neglected echo signals of adjacent beams to form one finer and stronger imaging beam, providing better ‘out-of-focus’ image resolution and deeper image penetration.

PSH™(Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

iBeam™

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization

iClear

Gain improved image quality based on auto structure detection

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’

3D/4D Imaging

Including 3D/4D Flip & Sync features providing fast and easy image volume view from any direction

iLive

Integrating traditional ray casting algorithm with a new virtual lighting mode, iLive generates exciting real visual effects such as interactive shadowing, skin scattering and human skin-like images.

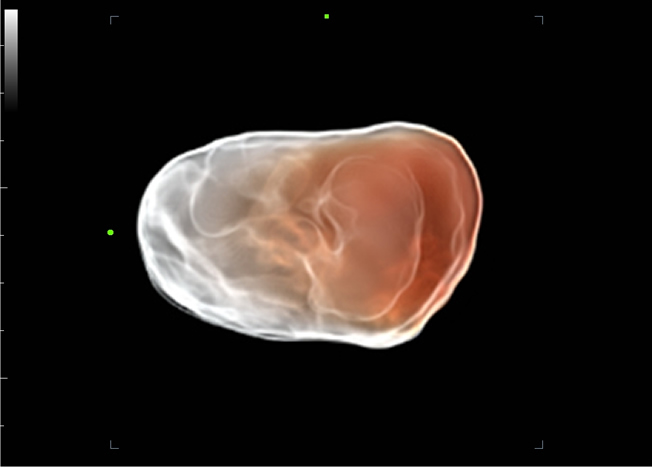

Depth VR

Innovative new algorithm with depth information to generate more vivid volume rendering and much better three dimensional effect. Multiple depth tint maps can be chosen according to user’s preference.

Smart FLC

Automatically detect the number and calculate the volume of follicles from a 3D volume image.

  • Accurate assessment of the size of follicles
  • Follicles are automatically sorted by sizes with color code
  • Easy reporting with colorful graphic designed for follicle study

iPage™

A CT-like view functionality displaying volume data in multiple parallel 2D images to effectively interpret anatomical structures

Curved MPR™

Providing complete visual examination for organs and structures of different shapes by 3D volume data view in linear and curved planes

SCV™

Slice Contrast View helps deliver higher contrast resolution and reduced noise, enabling higher-quality anatomical assessment with more information

Niche/3 Slice

Get a 3D sectional view of the A, B and C planes to better understand the internal structure

Color STIC

Spatio-Temporal Image Correlation permits advanced fetal heart diagnosis with color flow in real time 4D

Color 3D

Analyze branched vessels effectively with 3D color Doppler

Workflow

Gesture Sensitive Touch Screen

The smart 13.3 inch motion sensitive touch screen lets you do more than you ever imagined. Be it scrolling through images, shifting the image to and from the monitor, zoom in/out, measure or starting specific user-defined functions with a defined hand motion, the DC-70 Expert allows to get more done and much faster.

Smart OB™

Auto measurement of fetal parameters: trace and calculate the BPD, OFD, HC, AC and FL on a single click

Smart-NT

Auto-trace tube cavity edge with measurement result

Smart-V

Automated trace measurements including accurate 3D VOI sketching and 3D volume size measurement

FreeView™

Improves patient’s comfort by automatically changing the angle of scanning plane on the Endo-cavity volume probe DE10-3E from -45° to + 45°

Raw Data

Enables optimum flexibility for post processing of the stored images including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning

iZoom™

Gain instant full screen view on the click of a single key

MedTouch

Size and physical distance now is no longer an obstacle. With MedTouch, a one-stop solution provides you with a smarter way to control the ultrasound device, access patient data and inbuilt tutorial software via your Android operated smart device.

MedSight

DC-70 Expert lets you transfer clinical images and cine to your iOS or Android powered smart device via an interactive app. It could be for a to-be-mother wanting to share the images of the fetus with her family or friends, it could be a training session or a discussion with your peers on a rare case, with MedSight you can now take the clinical examinations with you wherever needed.

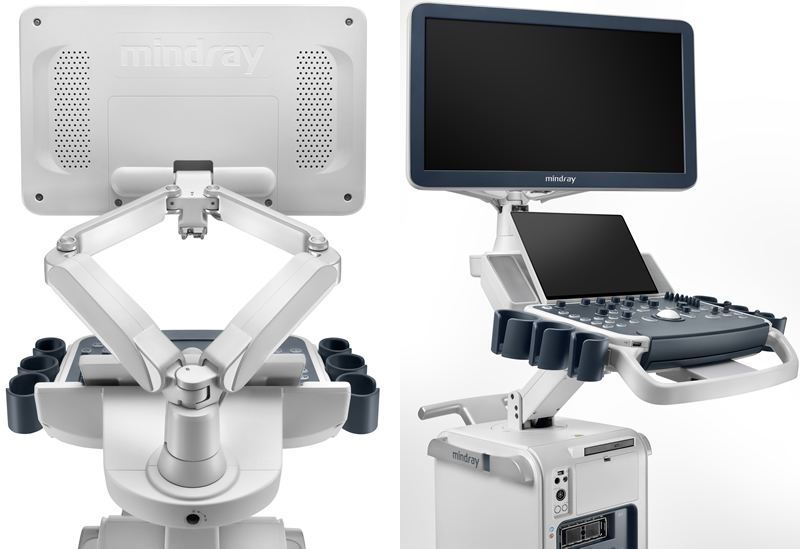

Ergonomics

  • 21.5″/23.8″ Full HD LCD Monitor
  • 13.3″ anti-glare touch panel
  • Dual-wing Floating Arm
  • Convenient cable hook
  • Gel warmer

Sample Clinical Images

  • 2 Views Single Gestation Sac Single CRL
